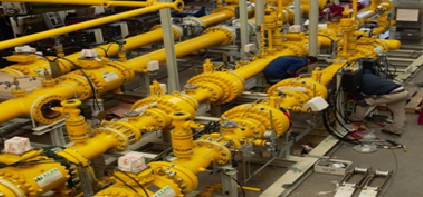

Metering for Custody Transfer or Allocation

• Flowmeter type:
  Orifice, Turbine, USM, Coriolis
• Analytical Package:
  Hydrocarbon, Moisture, Hydrocarbon Dew
  Point and H2S
• Total Custody / Fiscal uncertainty ± 0.35%
• Compliance to AGA 3, 7, 9
• For Gas and Cryogenic Application (LNG)

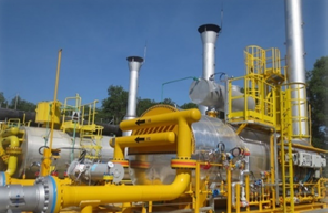

• Water or Oil Bath Indirect Heating
• Natural draft or Forced draft burner System
• Natural Gas as fuel
• Self Operated, suitable for unmanned Station
• High Combustion Efficiency
• General Purpose and Ex-proof Control System
• Low Maintenance, Safe & Proven System

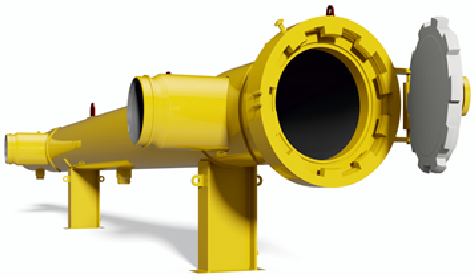

• Design Type : Launcher, Receiver, Launcher and Receiver
• Size up to 70”, ANSI 2500
• Suitable for Standard or Intelligence Pig
• Built in Safety Device and Interlocking System
• Equipped with Quick Opening Closure, Pig Signaler and instrumentation

• General Purpose and Ex-Proof Design
• Measurement technology: GC, Wobbe Index, NDIR, UV, FTIR, FID, TCD and others
• Sample Probe System
• Sampling line System
• System Integration of
  - Analytical Instrument
  - Sample Gas Conditioning System
  - Panel and Cabinet
  - Electrical & Instrumentation
  - Scada System

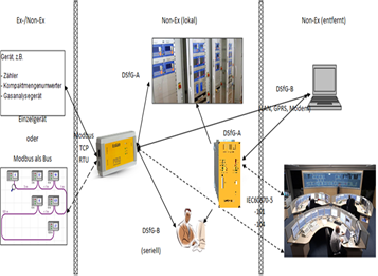

• For all tasks with the same operation philosophy:
• Calibration of the EcoPT sensor
• Local or remote maintenance for System Bus constructions
• Data retrieval of USM with standardized Modbus interface
• Process visualization e.g. of a gas analysis
• Administration of construction documents

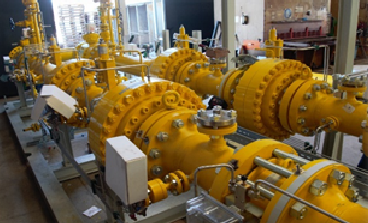

• Design Configuration - Active, Monitor and Slam Shut
• Self Regulating Pressure Control
• Integrated Pressure & Flow Control
• Remote Control System

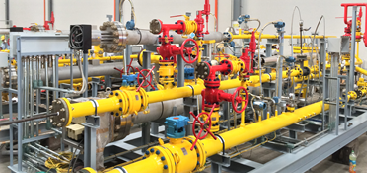

• To remove Solid and/or Liquid
• Filtration Technology such as Vane Pack, Cyclone or Filter Cartridge
• Low pressure drop, 0.1 Bar
• High Efficiency

• Design Type :
  - Metering + Pressure Regulating System (MPRS)
  - Filter + Metering + Pressure Regulating (FMPRS)
  - Filter + Metering + Direct Heater + Pressure Regulating (FMHPRS)
• Compact Design for limited space
• Easy installation
• Optional with weather proof cabinet

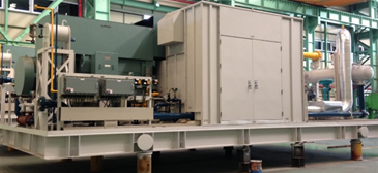

• Reciprocating, Screw & Centrifugal Compressor Type
• Powered by Electric Motor, Gas or Diesel Engine
• Lube and Non Lube system
• Gas, Lube Oil & Water Cooling System
• Vibration & Torsional Analysis
• Vibration Monitoring System
• Pulsation Study
• Noise Protection System

• Compliance to Local & International Environmental Regulations (US EPA 40 CFR 60)
• Sample Probe & Conditioning System designed according to Flue Gas Condition
• Extractive System Design : Cold Dry, Hot Wet and Dilution
• Low Maintenance and Operation Cost
• Pollutants measure: Particulate Matter, CO, CO2, NOx, SOx, H2S, HF, HCL, VOC and others
• CEMS Data Acquisition and Local Regulatory Reporting

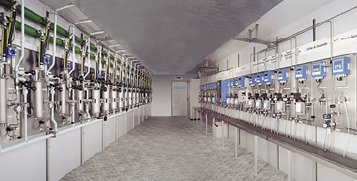

• Compact Wet and Dry Rack Design
• Rack or Cabin Design
• Measurement : pH, Conductivity, DO, Silica, Chlorine and other

Turnkey EPCC Contract Scope of Works
Site Construction and Installation Works

• Prime Mover
• Heat Recovery Steam Generator
• Emergency Shutdown System
• Pig Launcher Receiver
• Filter Separator
• Water Bath Heater
• Custody Transfer Metering
• Pressure Regulating

Mechanical & Piping Works

• Above / Underground Piping Work
• CS / SS / PE Piping Works
• Hot Tapping works
• Gas Venting System
• Manual and Actuated Valve

Electrical Works

• Power Supply
• Uninterrupted Power Supply
• Lightning Protection
• Earthling Protection

Instrumentation & Control Works

• Measurement & Control Instrumentation
• Wiring & Termination
• Tubing & Fitting
• Control Panel
• Remote Terminal Unit

Safety & Security Works

• Gas Detection System
• Fire Fighting
• Security for entire Facility
• Gas Pressure Relief
• Thermal Imaging Camera
• Perimeter Fence Intrusion System

Testing & Commissioning Works

• Factory Acceptance Test
• Strength & Load Test
• Functionality Test
• Simulation Test
• Calibration Check
• Accuracy Test
• Site Performance Test
